How HIV Damages the Immune System


The basic structure of HIV is similar to that of other viruses (Figure 1). HIV has a core of genetic material surrounded by a protective sheath, called a capsid. The genetic material in the core is RNA (ribonucleic acid), which contains the information that the virus needs in order to replicate (make more copies of itself) and perform other functions. You can think of RNA as the set of rules the virus follows in order to live.

In HIV, viral RNA has a protein called "reverse transcriptase" that is crucial for viral replication inside T cells, white blood cells that help coordinate activities of the immune system. (The function of reverse transcriptase, which means "writing backwards," will be explained later when we discuss how HIV infects T cells.)

HIV, like all other viruses, has proteins that are particular to itself. These proteins are called antigens. Antigens have diverse functions in viral replication. In the case of HIV, a combination of two antigens, gp120 and gp41, allow the virus to hook onto T cells and infect them. These antigens are located on the surface of the virus. (Another HIV antigen is p24, an antigen of the core of the virus that is measured to estimate the amount of active free-floating virus in the blood of HIV positive people).

Figure 1

HIV Targets T Cells

T cells are the main target of HIV in the blood, and they act as the host that the virus needs in order to replicate. (However, macrophages, B cells, monocytes, and other cells in the body can also be infected by HIV.) The T cell has a nucleus that contains genetic material in the form of DNA (deoxyribonucleic acid) (Figure 2). The cell's DNA has all the information that the cell needs in order to function. The difference between RNA and DNA is that the former is a single strand of genetic material, while the latter is a double strand (Figure 3). This difference is crucial in the process of T cell infection by HIV.

Figure 2

Figure 3

One important feature in the T cell's structure is the CD4 receptor site (Figure 2). CD4 is a protein on the surface of the T cell. HIV's gp120 antigen is a mirror image of the CD4 protein. If HIV bumps into the right place on the T cell's surface, the gp120 of the virus will lock onto the CD4 site of the T cell (Figure 4). Because of this, CD4 is called the receptor site or docking port for HIV.

Figure 4

When HIV successfully latches onto a T cell, the next step is to inject its core with the viral RNA and the reverse transcriptase (Figure 5).

Figure 5

HIV Takes Control of T Cells

Once inside the cell, the capsid dissolves, liberating the viral RNA and the reverse transcriptase. Now, in order to infect the cell, the viral RNA needs to travel into the T cell's nucleus (where it can change the cell's rules and convert it into a virus factory). However, for that to happen, an important transformation needs to take place.

Normally, the T cell's nucleus communicates with the rest of the cell by transforming DNA into RNA and sending it out of the nucleus. (In all the cells of the body, RNA acts as a messenger between the nucleus and the rest of the cell. The DNA makes RNA and sends it out to convey orders.) The genetic material's passport to leave the nucleus is to be transformed into single-stranded RNA. In the same fashion, the passport to enter the nucleus is to be transformed into double-stranded DNA.

Viral RNA needs to become DNA in order to start the replication process. Reverse transcriptase allows the RNA to borrow material from the cell and to "write backwards" a chain of viral DNA.

Figure 6

HIV is considered a retrovirus because of its capacity to transform RNA into DNA, reversing the natural process that takes place in cells. This is accomplished by the reverse transcriptase. Retroviruses are a special family of viruses to which only a few known viruses belong (although many others might yet be discovered).

HIV Replicates

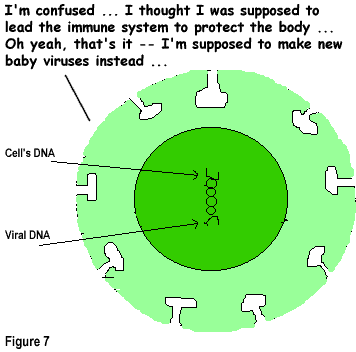

Once transformed, the viral DNA will travel into the T cell's nucleus and attach itself to the cell's DNA (a process similar to placing a "bug" in a computer software program). At this point, if the T cell is activated, it will start producing new virus instead of performing normal T cell functions.

Figure 7

At this stage, several things can happen. The new virus, or provirus, can remain inactive for a long time without triggering viral replication, or it can divide into two proviruses (a process called "mitosis"), or it can start producing new virus that will bud off from the T cell wall, eventually destroying the T cell.

Because it hijacks the "coordinator" T cells that help keep the immune system working, HIV is particularly devastating to immune health. In the process of replication, the virus destroys increasing numbers of T cells. The coordinator cells of an important part of the immune system are annihilated, leaving the body open to opportunistic infections.
